# 一、背包及背包物品遍历

通过相关API及IDA静态分析，定位如下函数

```c/c++
bool __fastcall sub_14171E500(__int64 a1, int a2, _QWORD *a3, int *a4, _DWORD *a5)
{
  __int64 v8; // rdi
  __int64 localPlayerPtr; // rax
  bool v10; // cc
  int v12; // eax
  int v13; // eax
  int v14; // eax
  __int64 bagPtr; // rax
  unsigned __int128 bagGUID; // [rsp+20h] [rbp-18h] BYREF

*a3 = 0i64;
  *a4 = -1;
  v8 = (int)a1;
  *a5 = 2;
  sub_1410E0EE0(a1);
  if ( !localPlayerPtr )                        // localPlayerPtr 实际为sub_1410E0EE0(a1)返回值
    return 0;
  *a4 = a2;
  if ( (int)v8 >= 0 )
  {
    if ( (int)v8 >= 11 )
      return *a3 && *a4 >= 0 && *a4 < *(_DWORD *)*a3;
    bagGUID = (unsigned int)v8 < 0xB && ((int)v8 < 4 || sub_141252550()) ? *((_OWORD *)&unk_142FA0450 + v8) : (unsigned __int128)0i64;
    bagPtr = ((__int64 (__fastcall *)(_QWORD, _QWORD, _QWORD, _QWORD))ObjGUID2Ptr)(
               &bagGUID,
               4i64,
               "D:\\BuildServer\\WoW\\1\\work\\DedicatedCheckout\\Classic\\Source\\Ui\\ContainerFrame.cpp",
               614i64);
    if ( bagPtr )
      *a3 = (*(__int64 (__fastcall **)(__int64))(*(_QWORD *)bagPtr + 0x350i64))(bagPtr);
    if ( (int)v8 < 4 )
      return *a3 && *a4 >= 0 && *a4 < *(_DWORD *)*a3;
    goto LABEL_23;
  }
  *a3 = localPlayerPtr + 0x28640;               // item-guid数组指针
  switch ( (_DWORD)v8 )
  {
    case 0xFFFFFFFB:
      v14 = *a4 + 0x4B;
      *a4 = v14;
      v10 = v14 <= 81;
      break;
    case 0xFFFFFFFD:
      v13 = *a4 + 0x5E;
      *a4 = v13;
      v10 = v13 <= 125;
      break;
    case 0xFFFFFFFE:
      v12 = *a4 + 0x2F;
      *a4 = v12;
      if ( v12 > 74 )
        return 0;
LABEL_23:
      *a5 = 3;
      return *a3 && *a4 >= 0 && *a4 < *(_DWORD *)*a3;
    case 0xFFFFFFFF:
      *a4 += 0x17;
      v10 = *a4 <= (int)(sub_1412544D0(*a3) + 23);
      break;
    default:
      return *a3 && *a4 >= 0 && *a4 < *(_DWORD *)*a3;
  }
  if ( !v10 )
    return 0;
  return *a3 && *a4 >= 0 && *a4 < *(_DWORD *)*a3;
}
```

根据上述伪代码，大胆猜测：

1. `&unk_142FA0450 + v8`为背包指针或者GUID；
2. `*a3 = (*(__int64 (__fastcall **)(__int64))(*(_QWORD *)bagPtr + 0x350i64))(bagPtr)`与背包中物品有关系。

通过Cheat Engine验证，发现：

1. `&unk_142FA0450 + bagIndex`为背包GUID。
2. 虚函数：`bagPtr + 0x350`为`lea rax, qword ptr ds:[rcx+0x00001730]`，观察 `bagPtr+0x1730`处值，发现`*(bagPtr+0x1730+8)`为背包物品GUID数组。

考虑到游戏存在系统自带背包，在上述伪代码中，背包物品指针为`localPlayerPtr + 0x28640`

因此，有了如下遍历函数：

```c++
void DbgWin::OnBnClickedButton3()
{
	// TODO: 在此添加控件通知处理程序代码
	std::string str = "";
	for (auto i = -1; i < 5; i++)
	{

if (utils::read<DWORD64>(g_ModuleHandle + offset::BagGUID + i * 16) == 0)     //背包为空
		{
			if (i == -1)         //系统自带背包
			{
				DWORD64 playerAddr = getLocalPlayerPtr();
				auto ptr = utils::read<DWORD64>(playerAddr + 0x28648);
				str += "ptr:" + utils::ptr2str(ptr)+"\tCapacity:20      ---->默认背包\r\n";
				for (int j = 0; j < 20; j++) {
					if (utils::read<DWORD64>(ptr + (j + 23) * 16) == 0)      //物品为空
						continue;
					auto ItemPtr = guid2ptr((char*)(ptr + (j + 23) * 16));      //背包ptr
					auto pDescript = utils::read<DWORD64>(ItemPtr + offset::StorageField);
					auto id = utils::read<DWORD64>(pDescript + offset::ItemID);
					auto count = utils::read<DWORD64>(pDescript + offset::ItemStackCount);
					str += "    (" + std::to_string(i + 1) + "," + std::to_string(j + 1) + ")\tid:" + std::to_string(id) + "\tcount:" + std::to_string(count) + "\r\n";
				}

}
			continue;
		}
		auto ptr = guid2ptr((char*)(g_ModuleHandle + offset::BagGUID + i * 16));      //背包ptr
		str+="ptr:"+ utils::ptr2str(ptr) ;
		auto size = utils::read<uint32_t>(ptr + offset::BagItemOffset + offset::BagItemsCapacity);
		auto itemguidptr = utils::read<DWORD64>(ptr + offset::BagItemOffset + offset::BagItemGUIDOffset);
		str += "\tCapacity:" + std::to_string(size) +"\tItemGuidPtrs:"+ utils::ptr2str(itemguidptr)+ "\r\n";
		for (auto j = 0; j < size; j++)
		{
			if (utils::read<DWORD64>(itemguidptr + j * 16) == 0)      //物品为空
				continue;
			auto ItemPtr = guid2ptr((char*)(itemguidptr + j * 16));      //背包ptr
			auto pDescript = utils::read<DWORD64>(ItemPtr + offset::StorageField);
			auto id = utils::read<DWORD64>(pDescript + offset::ItemID);
			auto count = utils::read<DWORD64>(pDescript + offset::ItemStackCount);
			str += "    (" + std::to_string(i+1)+"," + std::to_string(j + 1)+")\tid:" + std::to_string(id) +"\tcount:" + std::to_string(count) + "\r\n";
		}
	}
	SetDlgItemText(IDC_EDIT1, str.c_str());
}
```

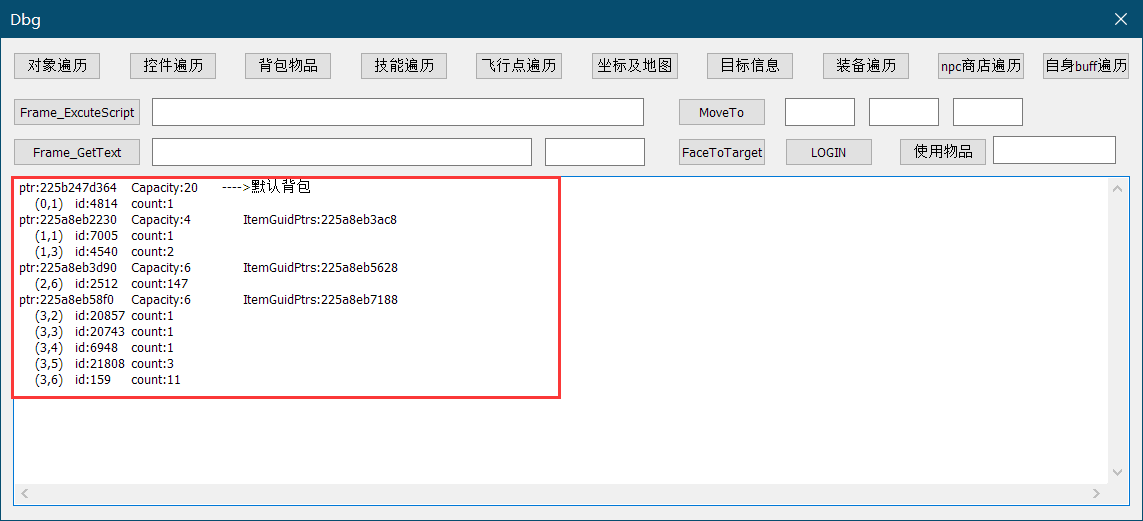

运行效果如下图所示：

![](https://i.loli.net/2021/07/31/Ki6HYubCQaIr9n8.png)

# 二、装备物品遍历

由于人物只能佩戴19件装备，有了如下遍历。

```c++
void DbgWin::OnBnClickedButton8()
{
	// TODO: 在此添加控件通知处理程序代码
	DWORD64 playerAddr = getLocalPlayerPtr();

auto ptr = utils::read<DWORD64>(playerAddr + 0x28648);

std::string str = "ptr:" + utils::ptr2str(ptr) + "\r\n";
	for (int i = 0; i < 19; i++) {
		char guid[128] = "\0";
		g_Func_guid2Str((unsigned char*)(ptr + i * 16), guid, 128);//游戏guid转str函数
		str += "ptr:" + utils::ptr2str(ptr + i * 16)+"\tindex:" + std::to_string(i+1) + "\tguid:" + std::string(guid) + "\r\n";
	}
	SetDlgItemText(IDC_EDIT1, str.c_str());

}
```

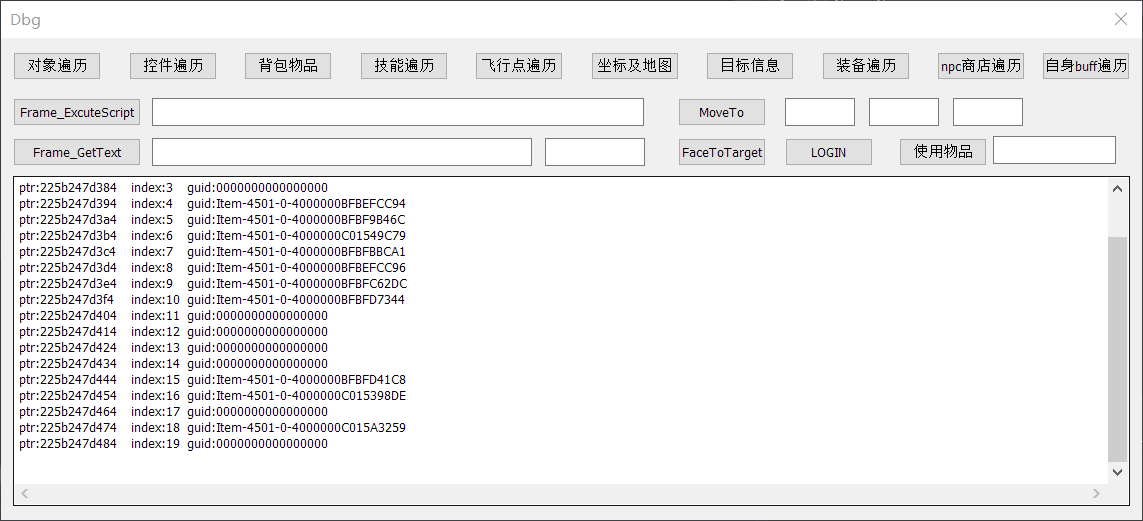

其效果如下图所示：

![](https://i.loli.net/2021/07/31/avf21gokGPVD7nY.png)

# 三、buff、debuf遍历

```c++
void DbgWin::OnBnClickedButton15()
{
	// TODO: 在此添加控件通知处理程序代码
	DWORD64 playerAddr = getLocalPlayerPtr();

auto count = utils::read<DWORD>(playerAddr + offset::AuraCount1);
	std::string str = "";
	for (int i = 0; i < count; i++) {
		auto aruaID = utils::read<DWORD>(playerAddr + i * offset::AuraSize + offset::AuraTable1 + offset::AuraSpellId);
		auto timeLeft = utils::read<DWORD>(playerAddr + i * offset::AuraSize + offset::AuraTable1 + offset::AuraTimeLeft);
		auto flags = utils::read<UINT16>(playerAddr + i * offset::AuraSize + offset::AuraTable1 + offset::AuraFlags);
		auto lv = utils::read<UINT16>(playerAddr + i * offset::AuraSize + offset::AuraTable1 + offset::AuraLevel);
		char guid[128] = "\0";
		g_Func_guid2Str((unsigned char*)(playerAddr + i * offset::AuraSize + offset::AuraTable1 + offset::AuraOwnerGUID), guid, 128);
		if(aruaID!=0)
		str += "ID:" + std::to_string(aruaID) + "\ttimeLeft:" + std::to_string(timeLeft) + "\tflags:" + std::to_string(flags) + "\tlv:" + std::to_string(lv) + "\towner:" + std::string(guid)+"\r\n";
	}
	SetDlgItemText(IDC_EDIT1, str.c_str());
}
```

游戏中unit对象（type为3）buff遍历方式同上。

最后修改：2021 年 09 月 22 日 11 : 37 AM
