QtTools之designer源码剥析（一）源码结构

博主：灯火微末
发布时间：2021 年 09 月 26 日
1675次浏览
暂无评论
7379字数
分类： QT剥析

一直想整个图形绘制工具，但是考虑到直接解析SVG的话，不好对SVG对象进行实时交互，所以就有了该系列文章，看看Qt自带的designer是怎么实现的，然后学习之~

# 一、源码结构与子项目定位

从Qt官网下载qt-everywhere-src-版本号.zip源码文件后，解压。

其根目录下qttools为本次分析目标。

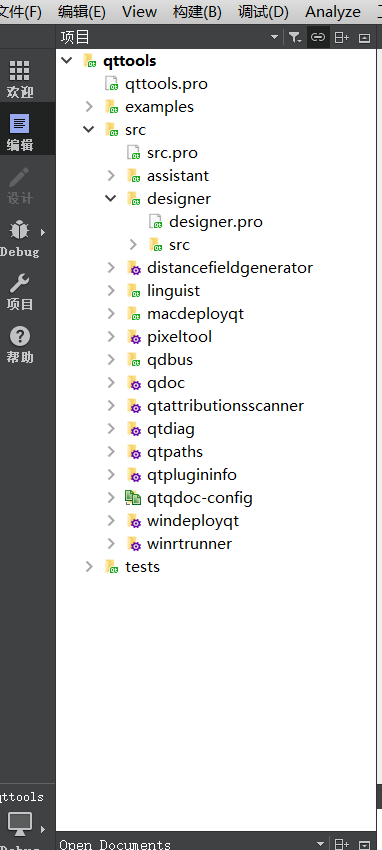

使用QtCreator打开qttool.pro项目文件，即可得到如下图所示项目结构：

![QQ截图20210926172404.png](https://i.loli.net/2021/09/26/T43HqtVCvrgDOYo.png)

其中`src->designer`源码为重点分析目标。

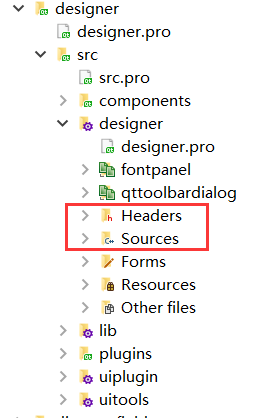

其目录结构如下：

![QQ截图20210926200927.png](https://i.loli.net/2021/09/26/5BWKQULlrxE91Fc.png)

接下来，优先分析`Headers`和`Sources`目录下源码。

# 二、designer启动流程

main.cpp中main函数：

```c++
int main(int argc, char *argv[])
{
    Q_INIT_RESOURCE(designer);

QCoreApplication::setAttribute(Qt::AA_EnableHighDpiScaling);
    QCoreApplication::setAttribute(Qt::AA_UseHighDpiPixmaps);

// required for QWebEngineView
    QCoreApplication::setAttribute(Qt::AA_ShareOpenGLContexts);

QDesigner app(argc, argv); //外层对象
    //arg解析
    switch (app.parseCommandLineArguments()) {
    case QDesigner::ParseArgumentsSuccess:
        break;
    case QDesigner::ParseArgumentsError:
        return 1;
    case QDesigner::ParseArgumentsHelpRequested:
        return 0;
    }
    QGuiApplication::setQuitOnLastWindowClosed(false);

return QApplication::exec();
}
```

继续看QDesigner实现：

```c++
//qdesigner.h
//静态类指针获取
#define qDesigner \
    (static_cast<QDesigner*>(QCoreApplication::instance()))

class QDesignerWorkbench;
class QDesignerToolWindow;
class MainWindowBase;
class QDesignerServer;
class QDesignerClient;
class QErrorMessage;
class QCommandLineParser;
struct Options;

class QDesigner: public QApplication
{
    Q_OBJECT
public:
    enum ParseArgumentsResult {
        ParseArgumentsSuccess,
        ParseArgumentsError,
        ParseArgumentsHelpRequested
    };

QDesigner(int &argc, char **argv);
    ~QDesigner() override;
    //参数
    ParseArgumentsResult parseCommandLineArguments();
    //工作区->界面交互定义
    QDesignerWorkbench *workbench() const;
    //服务端，暂不清楚干啥
    QDesignerServer *server() const;
    //主窗口基类
    MainWindowBase *mainWindow() const;
    //设置主窗口
    void setMainWindow(MainWindowBase *tw);

protected:
    bool event(QEvent *ev) override;

signals:
    void initialized();

public slots:
    void showErrorMessage(const char *message);

private slots:
    void callCreateForm();

private:
    void showErrorMessageBox(const QString &);

QDesignerServer *m_server;
    QDesignerClient *m_client;
    QDesignerWorkbench *m_workbench;
    QPointer<MainWindowBase> m_mainWindow;
    QPointer<QErrorMessage> m_errorMessageDialog;

QString m_initializationErrors;
    QString m_lastErrorMessage;
    bool m_suppressNewFormShow;
};

QT_END_NAMESPACE

#endif // QDESIGNER_H
```

可以断定，QDesigner是个App管理类，负责前台窗口、后台server维护以及基本的消息处理。

继续看`QDesignerWorkbench`：

```c++
class QDesignerWorkbench: public QObject
{
    Q_OBJECT

public:
    QDesignerWorkbench();
    ~QDesignerWorkbench() override;

UIMode mode() const;

QDesignerFormEditorInterface *core() const;
    QDesignerFormWindow *findFormWindow(QWidget *widget) const;

QDesignerFormWindow *openForm(const QString &fileName, QString *errorMessage);
    QDesignerFormWindow *openTemplate(const QString &templateFileName,
                                      const QString &editorFileName,
                                      QString *errorMessage);

int toolWindowCount() const;
    QDesignerToolWindow *toolWindow(int index) const;

int formWindowCount() const;
    QDesignerFormWindow *formWindow(int index) const;

QDesignerActions *actionManager() const;

QActionGroup *modeActionGroup() const;

QRect availableGeometry() const;
    QRect desktopGeometry() const;

int marginHint() const;

bool readInForm(const QString &fileName) const;
    bool writeOutForm(QDesignerFormWindowInterface *formWindow, const QString &fileName) const;
    bool saveForm(QDesignerFormWindowInterface *fw);
    bool handleClose();
    bool readInBackup();
    void updateBackup(QDesignerFormWindowInterface* fwi);
    void applyUiSettings();

signals:
    void modeChanged(UIMode mode);
    void initialized();

public slots:
    void addFormWindow(QDesignerFormWindow *formWindow);
    void removeFormWindow(QDesignerFormWindow *formWindow);
    void bringAllToFront();
    void toggleFormMinimizationState();

private slots:
    void switchToNeutralMode();
    void switchToDockedMode();
    void switchToTopLevelMode();
    void initializeCorePlugins();
    void handleCloseEvent(QCloseEvent *);
    void slotFormWindowActivated(QDesignerFormWindow* fw);
    void updateWindowMenu(QDesignerFormWindowInterface *fw);
    void formWindowActionTriggered(QAction *a);
    void adjustMDIFormPositions();
    void minimizationStateChanged(QDesignerFormWindowInterface *formWindow, bool minimized);

void restoreUISettings();
    void notifyUISettingsChanged();
    void slotFileDropped(const QString &f);

private:
    QWidget *magicalParent(const QWidget *w) const;
    Qt::WindowFlags magicalWindowFlags(const QWidget *widgetForFlags) const;
    QDesignerFormWindowManagerInterface *formWindowManager() const;
    void closeAllToolWindows();
    QDesignerToolWindow *widgetBoxToolWindow() const;
    QDesignerFormWindow *loadForm(const QString &fileName, bool detectLineTermiantorMode, QString *errorMessage);
    void resizeForm(QDesignerFormWindow *fw,  const QWidget *mainContainer) const;
    void saveGeometriesForModeChange();
    void saveGeometries(QDesignerSettings &settings) const;

bool isFormWindowMinimized(const QDesignerFormWindow *fw);
    void setFormWindowMinimized(QDesignerFormWindow *fw, bool minimized);
    void saveSettings() const;

QDesignerFormEditorInterface *m_core;
    QDesignerIntegration *m_integration;

QDesignerActions *m_actionManager;
    QActionGroup *m_windowActions;

QMenu *m_windowMenu;

QMenuBar *m_globalMenuBar;

struct TopLevelData {
        ToolBarManager *toolbarManager;
        QVector<QToolBar *> toolbars;
    };
    TopLevelData m_topLevelData;

UIMode m_mode;
    DockedMainWindow *m_dockedMainWindow;

QVector<QDesignerToolWindow *> m_toolWindows;
    QVector<QDesignerFormWindow *> m_formWindows;

QMenu *m_toolbarMenu;

// Helper class to remember the position of a window while switching user
    // interface modes.
    class Position {
    public:
        Position(const QDockWidget *dockWidget);
        Position(const QMdiSubWindow *mdiSubWindow, const QPoint &mdiAreaOffset);
        Position(const QWidget *topLevelWindow, const QPoint &desktopTopLeft);

void applyTo(QMdiSubWindow *mdiSubWindow, const QPoint &mdiAreaOffset) const;
        void applyTo(QWidget *topLevelWindow, const QPoint &desktopTopLeft) const;
        void applyTo(QDockWidget *dockWidget) const;

QPoint position() const { return m_position; }
    private:
        bool m_minimized;
        // Position referring to top-left corner (desktop in top-level mode or
        // main window in MDI mode)
        QPoint m_position;
    };
    typedef  QHash<QWidget*, Position> PositionMap;
    PositionMap m_Positions;

enum State { StateInitializing, StateUp, StateClosing };
    State m_state;
    bool m_uiSettingsChanged; // UI mode changed in preference dialog, trigger delayed slot.
};
```

下期具体分析`QDesignerWorkbench`代码细节和执行流程。
